Motor Calculator

Features Motor Calculator

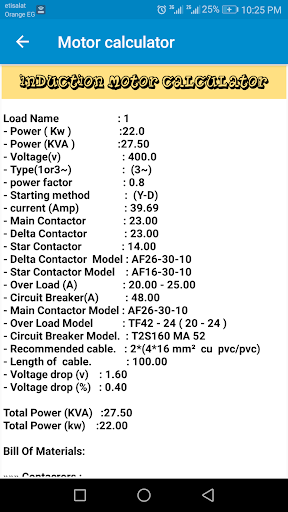

This is a good tool to design and calculate your motor control center component according to ABB and Schneider products.This app help you to calculate the true value and capacity of contactor & overload & circuit breaker and cable size, also a report with all loads and its calculation with list of the models and number of all component.* Just input your motor data :- motor power(kw)- voltage (volt)- motor Type (1 or 3~)- power factor- starting type (direct on line or star-delta)- distance from the motor to panel* Then click calculate to obtain:- Current value- Main, Star and Delta Contactor capacity- overload range- Circuit breaker range- Cable size and voltage drop (up to 1000 m cable Length)- total power in kw- model of Contactors, overloads and  circuit breakers- list of all loads and its calculated data and models selected- bill of materials- power and control wirringTry it
